Hej alle sammen 👋

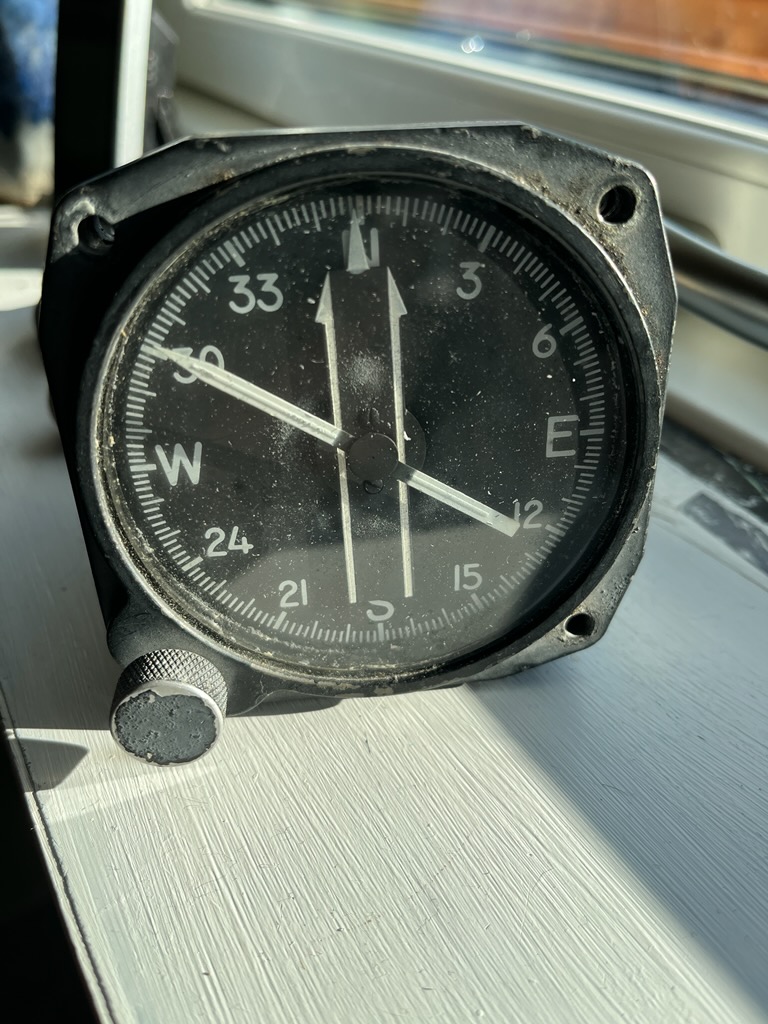

Er der nogen her i gruppen, der har erfaring med at få et originalt kompas af typen Indicator Magnesyn Remote Indication Compass til at virke?

Jeg mangler selve styreenheden, og i kompasset står der følgende:

“To be used only with AN-5730-3 transmitters of same manufacturer or ternate.”
“AN-5730-2A, serial number 485866 – Eclipse Pioneer Division.”

Jeg har allerede søgt en del på nettet efter enheden, men uden held.
Er der nogen, der kender til, hvor man kan finde en kompatibel styreenhed, eller har prøvet at få sådan et system op at køre?
Alle tips eller erfaringer modtages 🙏

Hej,
Som jag gissade ser kompassen mer ut att användas i flygplan.
Du kanske ska söka på flygsidor efter transmittern.
Jag hittade ett komplett set på Bells aviation med kompass AN-5730-2A och transmitter AN5730-3. De lär dock inte fungera i din båt såvida du inte har 26 V/400Hz eller 52 V/800Hz system.
Både kompass och tranmitter matas med någon av dessa spänningar. Har den verkligen fungerat i din båt?
I så fall måste du ha en converter från 12 VDC till 26 V/400 Hz.
Det känns både dyrt och komplicerat! Fast instrumentet är ju fint.

https://www.bellsaviation.com/product/INST-1240.html?Session_ID=8c60f2368e1eb2c5f33295e6ff98fa62

Tusind tak for den grundige forklaring! Jeg var også klar over, at det stammer fra et fly – formentlig fra 1940’erne. Det har ikke virket, hverken mens jeg har haft båden eller for den tidligere ejer, hvilket jo giver god mening, når der ikke er nogen styreenhed installeret. Men det må jo have fungeret engang. Det er et virkelig flot instrument, og det kunne være lidt sjovt at få det til at virke, men du har nok ret i, at det er lidt komplekst 😅

Tak:-)
Han ved godt at jeg er på jagt efter en.

Hei Marianne

I believe I have one of these in my 26 Family and it’s working. I have not paid too much attention to it since buying the boat in 2020 but it does work (not too sure if it’s accurate I have not checked it with a reference compass).

I thought it was unique to my boat fitted by a previous owner. Is it true that it was an original option from dealers or the factory?

Oliver

Hi there!
Thanks a lot for your reply – it’s really great to hear that your compass is actually working. That gives me hope that I might be able to get mine running too, if I can find the right control unit.

To be honest, I don’t know whether this system was originally installed from the factory or added later, but I have a feeling that several Coronet boats had it. I’ve spoken with someone who has the same setup in a Coronet Explorer.

It appears that the compass was originally used in the cockpits of many US Army Air Force and US Navy aircraft during WWII, especially different types of bombers. Quite fascinating that it somehow also ended up in several of our Coronet boats.

By the way, during my summer holiday I met a man in a harbour who had worked 15 years at Botved from 1971, building Coronet hulls. He was fascinated that I still had several original instruments in my dashboard. I’m not sure if he specifically noticed the compass or if it just blended in well with the rest.

Hey! Thank you for the reply and the details. As you say pretty incredible that our boats have this WWII technology in them, which was quite sophisticated at the time for a pleasure boat. I will be at my boat again in a couple of weeks and will take some pics of the receiver (compass unit) and the transmitter (gyro unit) together with some manufacturer details and model numbers. Might be some help for you.

BR
Oliver

Great, I’d really appreciate that! It will definitely help me a lot. Thanks!
